उत्पाद विवरण:
|
नाम: | ऑटो स्पेसर झुकने की मशीन | अधिकतम आकार: | 2000 मिमी * 2000 मिमी (2500 मिमी * 2500 मिमी) |
---|---|---|---|
न्यूनतम आकार: | 250 मिमी * 200 मिमी | एल्यूमीनियम स्पेसर चौड़ाई: | 5.5-27mm |
आयामी त्रुटि: | ± 0.5mm | कोण त्रुटि: | ± 1º |
संसाधन गति: | ≤26s | हवा की आपूर्ति: | ≥0.65MPa |
कुल शक्ति: | AC220 / 380V 50Hz 2.5KW | आयाम: | 10500mm * 2200mm * 2600mm |
पीएलसी: | जर्मन सीमेंस | कम वोल्टेज विद्युत उपकरण: | जर्मन सीमेंस |
सर्वो मोटर: | जर्मन सीमेंस | सर्वो चालक: | जर्मन सीमेंस |
हाई लाइट: | ग्लास झुकने मशीन,औद्योगिक झुकने मशीन |

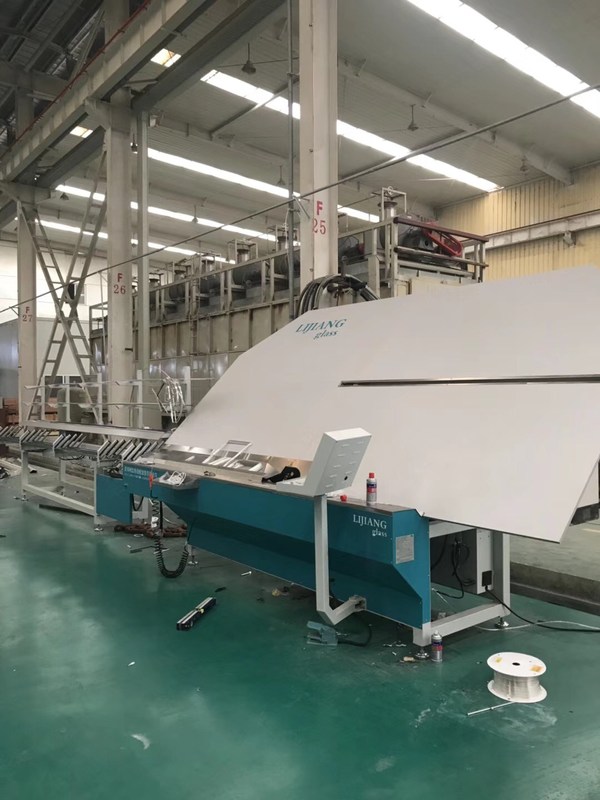

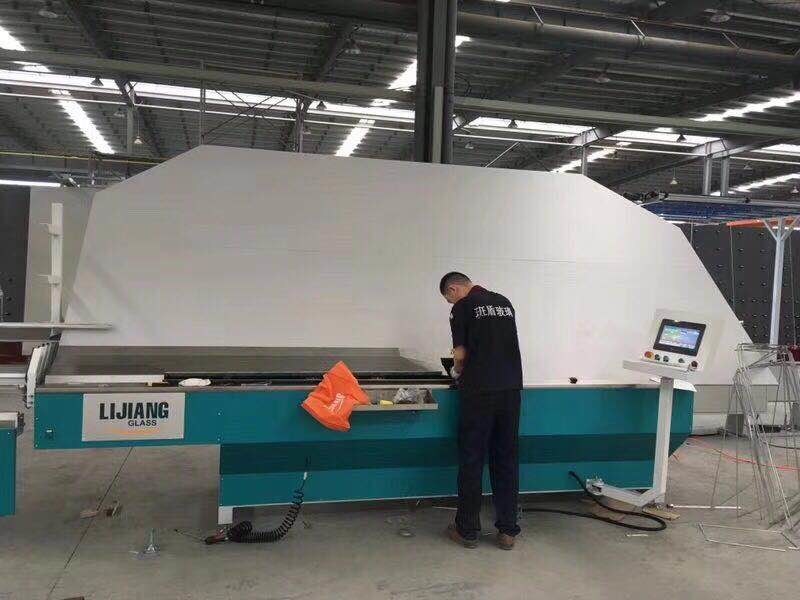

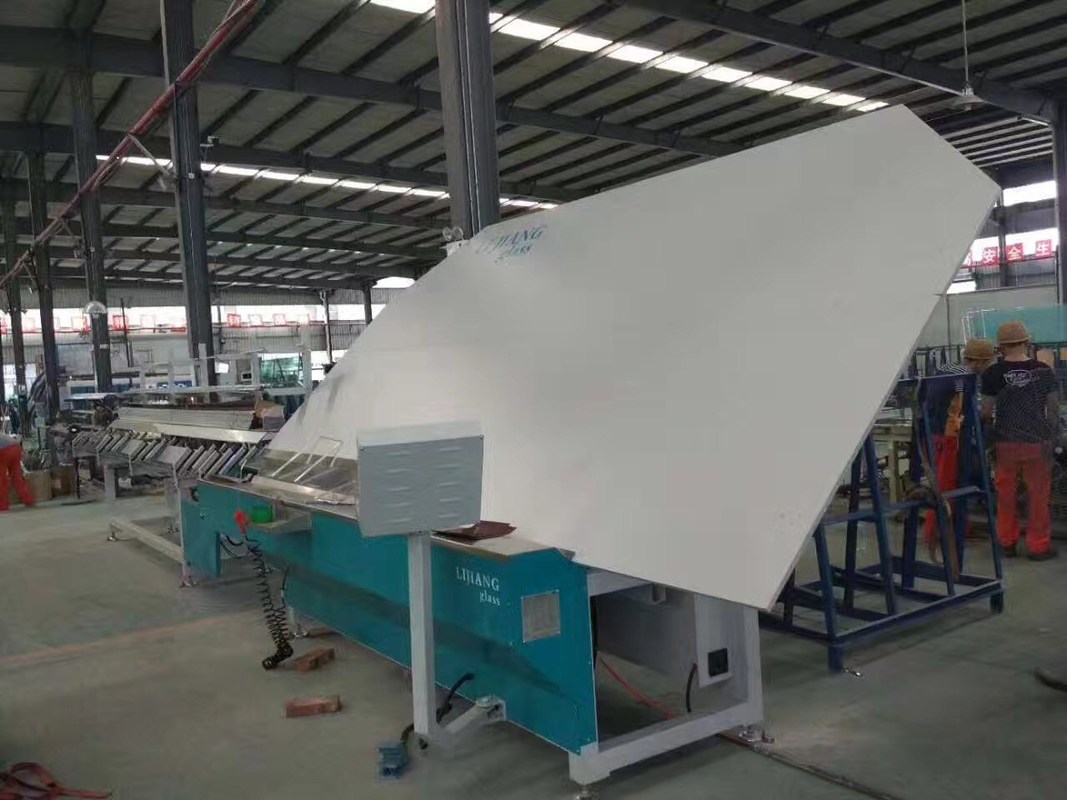

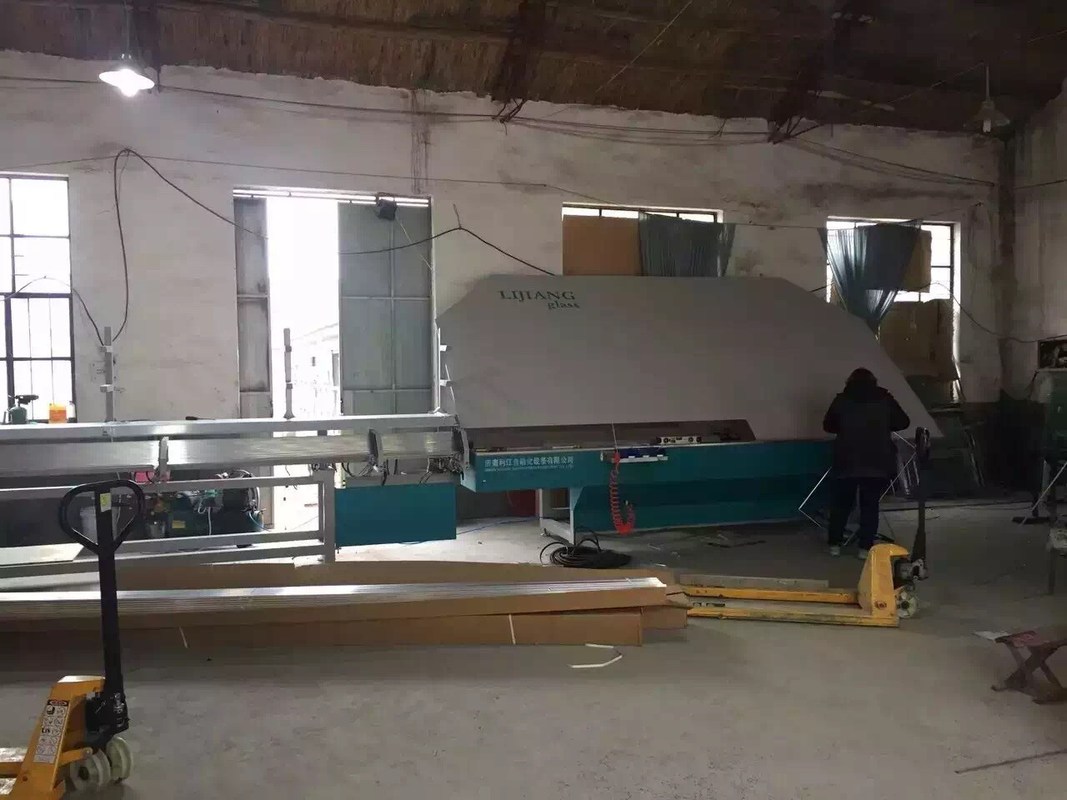

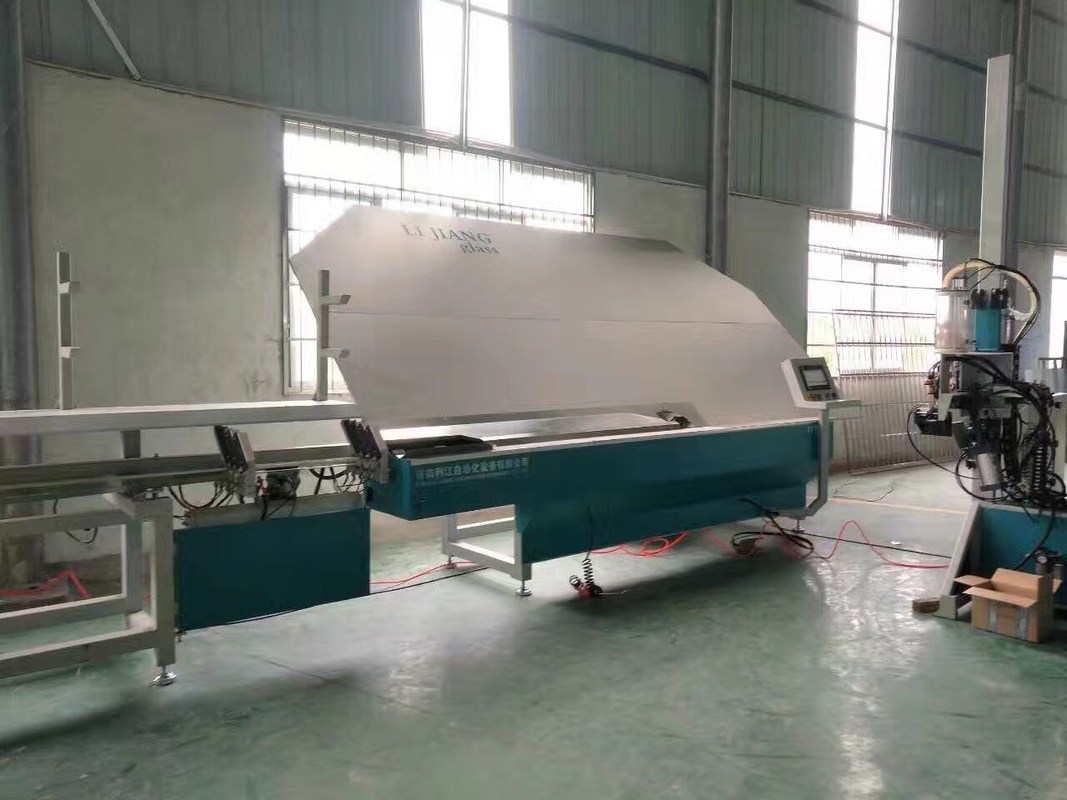

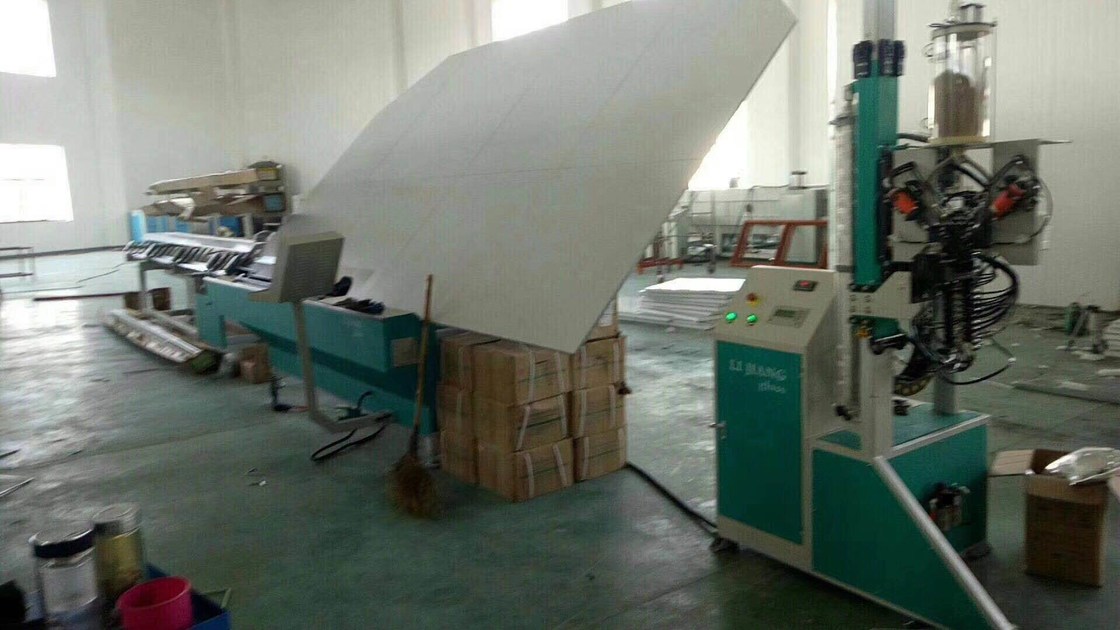

LJZW2020A इन्सुलेट ग्लास उत्पादन लाइन, ग्लास उद्योग एल्यूमिनियम स्पेसर झुकने मशीन, आसान और सटीक
सभी IG उत्पाद 20% OFFAY MAY, 2020 पर हैं
cleaning and drying section tilted vertical placement. सफाई और सुखाने वाला खंड ऊर्ध्वाधर प्लेसमेंट को झुकाता है। The control box is arranged on the outside of the cleaning section for easy operation. नियंत्रण बॉक्स को आसान संचालन के लिए सफाई अनुभाग के बाहर व्यवस्थित किया गया है। The cleaning section and water tank are made of stainless steel and corrosion resistant materials. सफाई अनुभाग और पानी की टंकी स्टेनलेस स्टील और जंग प्रतिरोधी सामग्री से बने होते हैं। The transfer roller is acid-alkali rubber roller. स्थानांतरण रोलर एसिड-क्षार रबर रोलर है। The cleaning and drying section adopts stepless frequency conversion speed regulation, and the glass can run smoothly at the appropriate speed. सफाई और सुखाने वाला अनुभाग स्टीच फ्रीक्वेंसी कन्वर्जन स्पीड रेगुलेशन को अपनाता है, और ग्लास उचित गति से आसानी से चल सकता है। In the cleaning section, three pairs of brushes are cleaned with high-pressure water sprayer, which can clean low-e glass. सफाई खंड में, उच्च दबाव वाले पानी के स्प्रेयर से ब्रश के तीन जोड़े साफ किए जाते हैं, जो कम-ई ग्लास को साफ कर सकते हैं। There is a pair of inclined air knives with baffle in the middle of the drying section, which can be adjusted automatically according to the distance between two air knives with different thickness of glass, thus ensuring the effect of air drying. सुखाने अनुभाग के बीच में बाधक के साथ इच्छुक वायु चाकू की एक जोड़ी होती है, जिसे कांच की विभिन्न मोटाई के साथ दो वायु चाकू के बीच की दूरी के अनुसार स्वचालित रूप से समायोजित किया जा सकता है, जिससे वायु सुखाने का प्रभाव सुनिश्चित होता है। The fan is 11KW. पंखा 11KW का है।
The water system consists of two independent water circulation systems: the first level water circulation system and the second level water circulation system. जल प्रणाली में दो स्वतंत्र जल संचलन प्रणाली शामिल हैं: पहला स्तर जल संचलन प्रणाली और दूसरा स्तर जल संचलन प्रणाली। Water is pumped out of the water tank by the water pump and sprayed onto the glass surface by the spray pipe. पानी को पंप से पानी की टंकी से बाहर निकाला जाता है और स्प्रे पाइप से कांच की सतह पर छिड़काव किया जाता है। After cleaning the glass with a brush, the water flows back to the tank for recycling. ब्रश से ग्लास को साफ करने के बाद, पानी रिसाइकल करने के लिए टैंक में वापस बह जाता है। The primary cleaning water tank is equipped with a water heating device with temperature control, which can keep water temperature automatically. प्राथमिक सफाई पानी की टंकी तापमान नियंत्रण के साथ एक पानी हीटिंग डिवाइस से सुसज्जित है, जो पानी के तापमान को स्वचालित रूप से रख सकती है। In order to ensure the cleaning effect, the water conductivity must be no greater than 40 (including s, if the water quality is bad, need to be equipped with water treatment equipment, water after water treatment into the rinse water tank, recycling according to the above steps, the water treatment device by the user should bring along their own. सफाई प्रभाव को सुनिश्चित करने के लिए, पानी की चालकता 40 से अधिक नहीं होनी चाहिए (अगर पानी की गुणवत्ता खराब है, तो जल उपचार उपकरण, कुल्ला पानी की टंकी में पानी के उपचार के बाद पानी के साथ सुसज्जित किया जाना चाहिए) उपरोक्त चरणों में, उपयोगकर्ता द्वारा जल उपचार उपकरण को अपने साथ लाना चाहिए।
आवेदन

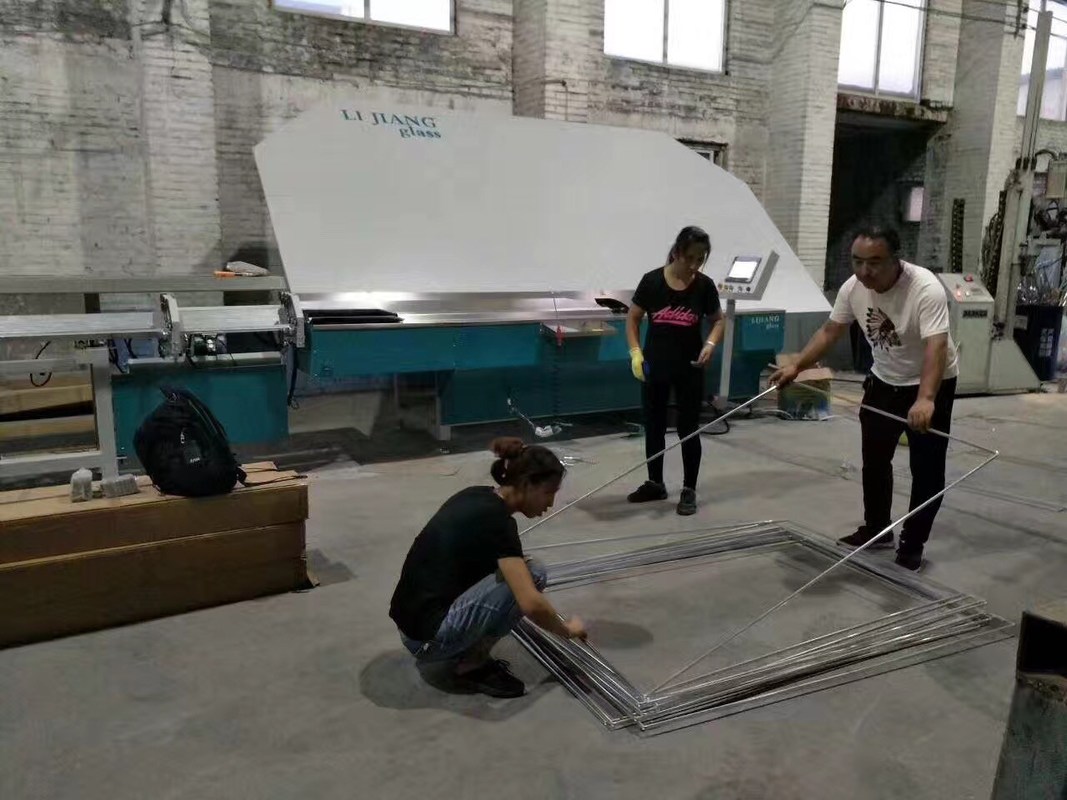

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. स्वचालित स्पेसर झुकने वाली मशीन इन्सुलेट ग्लास के एल्यूमीनियम फ्रेम बनाने के लिए एक विशेष उपकरण है, जो पारंपरिक निर्माण तकनीक की जगह लेती है। This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.cleaning discharge section is inclined vertical structure. यह उपकरण एक समय में एक एल्यूमीनियम पट्टी द्वारा उत्तल बहुभुज एल्यूमीनियम फ्रेम की एक किस्म बना सकता है, इस प्रकार एल्यूमीनियम फ्रेम की ताकत को मजबूत करता है, जिससे इन्सुलेट ग्लास का सीलिंग प्रभाव अधिक बेहतर होता है। डिस्चार्जिंग सेक्शन डिस्चार्ज ऊर्ध्वाधर संरचना है। The transfer roller is a wear-resistant, acid-proof and alkali polyurethane roll. ट्रांसफर रोलर पहनने के लिए प्रतिरोधी, एसिड-प्रूफ और क्षार पॉलीयूरेथेन रोल है। It adopts stepless frequency conversion speed regulation. यह stepless आवृत्ति रूपांतरण गति विनियमन को गोद लेती है।
fully automatic inflatable hollow glass flat compression section. पूरी तरह से स्वचालित inflatable खोखले ग्लास फ्लैट संपीड़न अनुभाग। It is suitable for laminating double layer and multilayer insulating glass. यह डबल लेयर और मल्टीलेयर इंसुलेटिंग ग्लास को लैमिनेट करने के लिए उपयुक्त है।
इस मशीन का उपयोग विभिन्न आकृतियों के प्लैनर ग्लास (लेपित ग्लास और टुकड़े टुकड़े में ग्लास, आदि) से बने खोखले ग्लास को संपीड़ित करने के लिए किया जा सकता है।
उपकरण का विवरण
नाम | ब्रांड | नाम | ब्रांड |
पीएलसी | जर्मन सीमेंस | त्रिक | ताइवान AIRTAC |
कम वोल्टेज विद्युत उपकरण | जर्मन सीमेंस | सिलेंडर | ताइवान AIRTAC |
सर्वो मोटर | जर्मन सीमेंस | सोलेनोइड वाल्व | ताइवान AIRTAC |
सर्वो चालक | जर्मन सीमेंस | बिजली स्विच करें | ताइवान TEND |
रिले | जापन ओमरॉन | टच स्क्रीन | ताइवान WEINVIEW |
सेंसर | कोरिया ऑटोमोबाइल | मार्गदर्शक | ताइवान TBI |
