उत्पाद विवरण:
|
नाम: | स्वचालित इन्सुलेट ग्लास उत्पादन लाइन | मैक्स।: | 2500 मिमी * 3500mm |
---|---|---|---|
मिन।: | 280mm * 400mm | कांच की मोटाई: | 3-15mm |
इन्सुलेट ग्लास मोटाई: | 50 मिमी / 60 मिमी | ग्लास धोने की गति: | 2-10m / मिनट |
हाई लाइट: | डबल ग्लेज़िंग उत्पादन,इन्सुलेट ग्लास लाइन |
Max. मैक्स। glass size कांच का आकार | 2500 मिमी * 3500mm |
Min. मिन। glass size कांच का आकार | 280mm * 400mm |
कांच की मोटाई | 3-15mm |
इन्सुलेट ग्लास मोटाई | 50 मिमी / 60 मिमी |
ग्लास धोने की गति | 2-10m / मिनट |
ग्लास कन्वेयर गति | 45 एम / मिनट |
ब्रश धोना | 3 जोड़े |
जलापूर्ति | पानी की खपत: 0.5t / h चालकता: 40μs / सेमी |
हवा की आपूर्ति | प्रवाह: 0.8 मी / मिनट |
हवा का दबाव | ≥0.8MPa |
कुल शक्ति | 3P 380V 50HZ 40KW |
आयाम | 23500 * 3500 * 3700mm |
वजन | 6500kg |
नाम | मूल | ब्रांड |
मोटर स्थानांतरित करें | जर्मनी | सीमेंस |
ब्रश मोटर | जर्मनी | सीमेंस |
सर्वो मोटर | जर्मनी | सीमेंस |
पीएलसी | जर्मनी | सीमेंस |
कम वोल्टेज बिजली के उपकरण | जर्मनी | सीमेंस |
आवृत्ति कनवर्टर | जर्मनी | सीमेंस |
छोटा बटन | ताइवान | देते हैं |
बटन और सूचक प्रकाश | फ्रांस | श्नीडर |
टच स्क्रीन | ताइवान | WEINVIEW |
इंटरमीडिएट रिले | जापान | OMRON |
पानी का पंप | चीन | LINGXIAO |
मार्गदर्शक | ताइवान | HIWIN |
वायवीय अवयव | ताइवान | AIRTAC |
इलेक्ट्रिक गेज | चीन | मिरान |
फोटोइलेक्ट्रिक स्विच | कोरिया | AUTONICS |
जिनान LIJIANG स्वचालन उपकरण कं, लि |

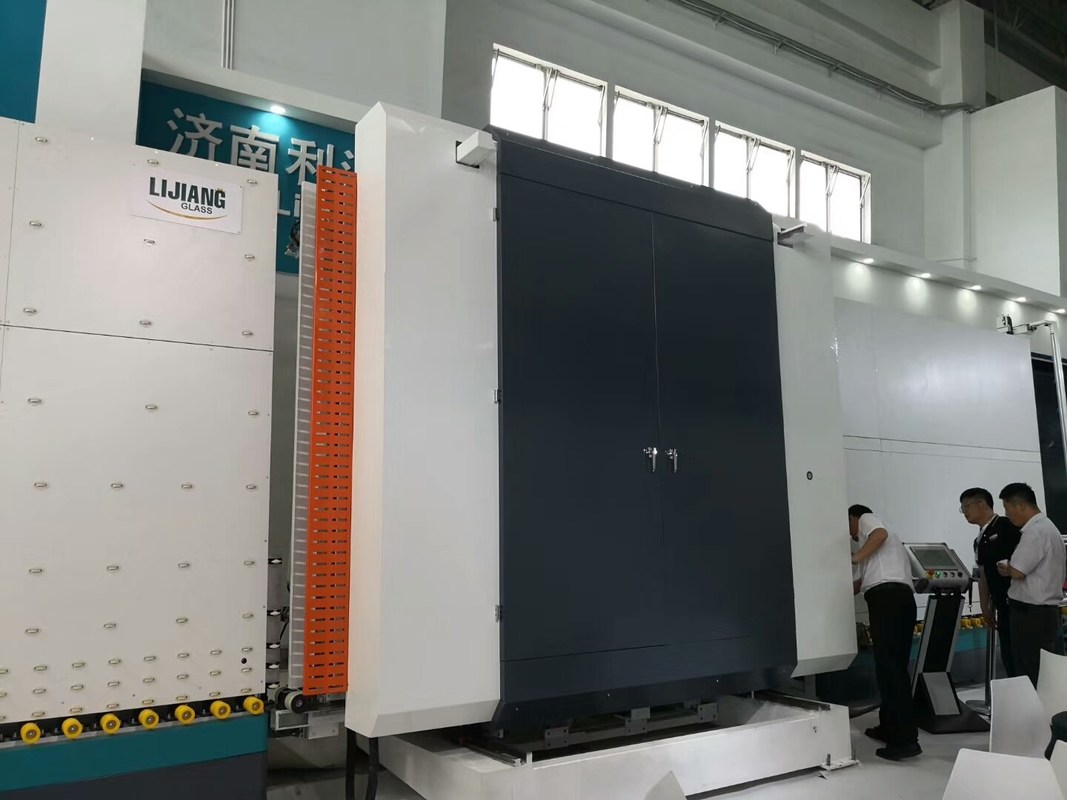

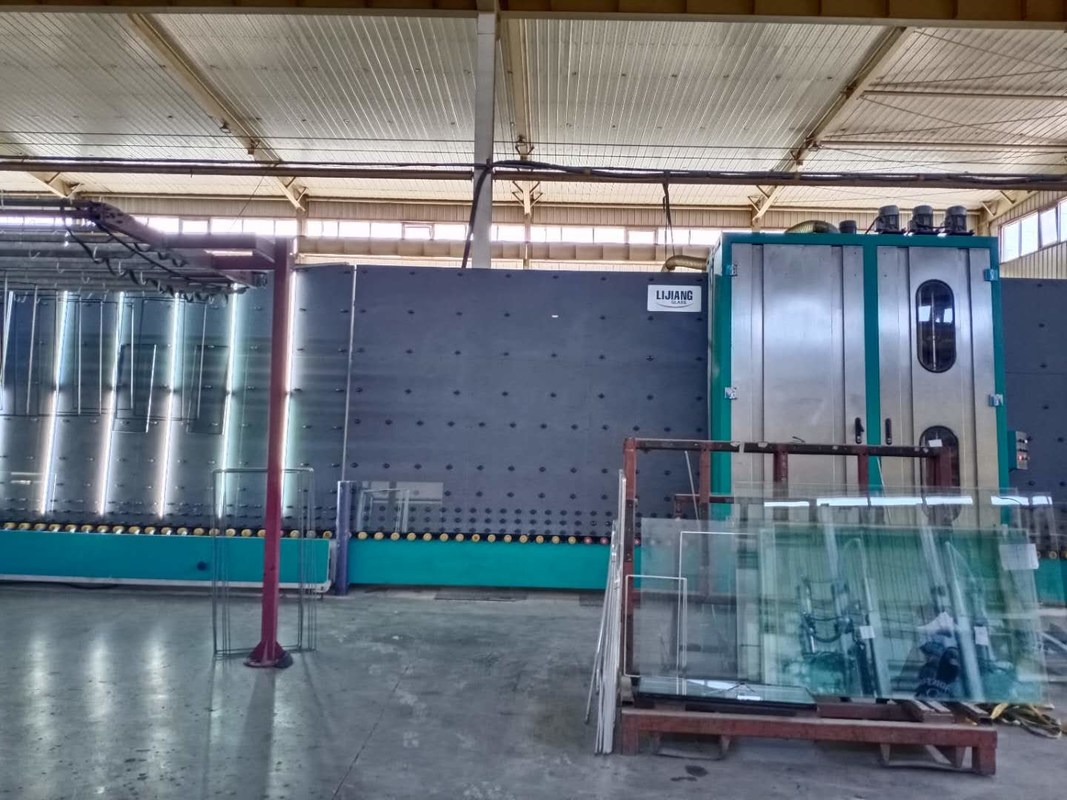

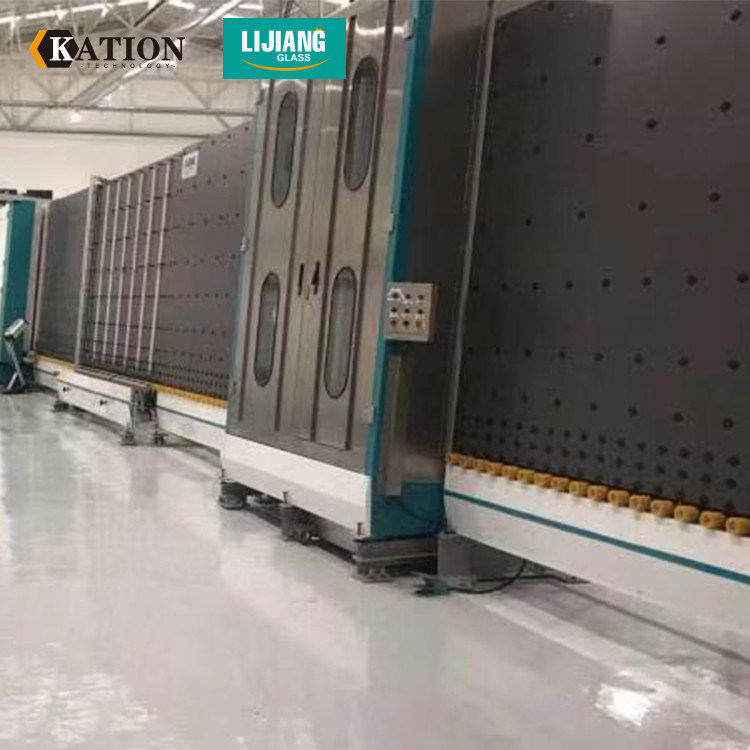

Lijiang IG production line uses the latest technology. लिजिआंग आईजी उत्पादन लाइन नवीनतम तकनीक का उपयोग करता है। Its main purpose is to create high-end quality and provide a large number of useful functions, improve production efficiency, save production costs and maximize profits. इसका मुख्य उद्देश्य उच्च-गुणवत्ता का निर्माण करना है और बड़ी संख्या में उपयोगी कार्य प्रदान करना, उत्पादन क्षमता में सुधार करना, उत्पादन लागत को बचाना और अधिकतम मुनाफा कमाना है।
Now Lijiang has mainly two different digging lines. अब लिजियांग में मुख्य रूप से दो अलग-अलग खुदाई लाइनें हैं। One uses a transfer wheel to transport glass, and the other is a new technology that uses air flotation technology to transport glass. एक ग्लास के परिवहन के लिए एक ट्रांसफर व्हील का उपयोग करता है, और दूसरा एक नई तकनीक है जो ग्लास के परिवहन के लिए एयर फ्लोटेशन तकनीक का उपयोग करता है। This new technology is to protect the glass from contamination and leave traces, so the new technology is adopted to improve the high quality of IG products. यह नई तकनीक कांच को संदूषण से बचाने और निशान छोड़ने के लिए है, इसलिए आईजी उत्पादों की उच्च गुणवत्ता में सुधार के लिए नई तकनीक को अपनाया जाता है।
विस्तृत विवरण
1.The special structure inside the washing machine can automatically detect the thickness of the glass. 1. वॉशिंग मशीन के अंदर विशेष संरचना स्वचालित रूप से कांच की मोटाई का पता लगा सकती है। Different thicknesses of glass allow for faster transfer, increasing production speed. कांच की विभिन्न मोटाई तेजी से हस्तांतरण, उत्पादन की गति बढ़ाने के लिए अनुमति देती हैं। According to tests, it only takes 22s to produce 1m * insulating glass. परीक्षणों के अनुसार, 1 एम * इंसुलेटिंग ग्लास का उत्पादन करने में केवल 22 का समय लगता है।
1) There is a universal joint device, when the thickness of the glass was changed, the air knife moves forward and backward to determine the distance that the relative distance between the air knife and the glass is constant, so as to avoid damage to the glass. 1) एक सार्वभौमिक संयुक्त उपकरण है, जब कांच की मोटाई को बदल दिया गया था, हवा का चाकू आगे और पीछे की दूरी तय करता है कि हवा के चाकू और कांच के बीच की सापेक्ष दूरी निरंतर है, ताकि क्षति से बचने के लिए कांच। To change the thickness of the glass. कांच की मोटाई को बदलने के लिए।
2). 2)। There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly. कांच के निचले हिस्से के दोनों तरफ चेन गियर्स होते हैं ताकि कांच को सक्रिय रूप से स्थानांतरित किया जा सके जो कि एक तेज गति रख सकता है, न केवल बड़े आकार, छोटे आकार के ग्लास को भी जल्दी से पारित किया जा सकता है।

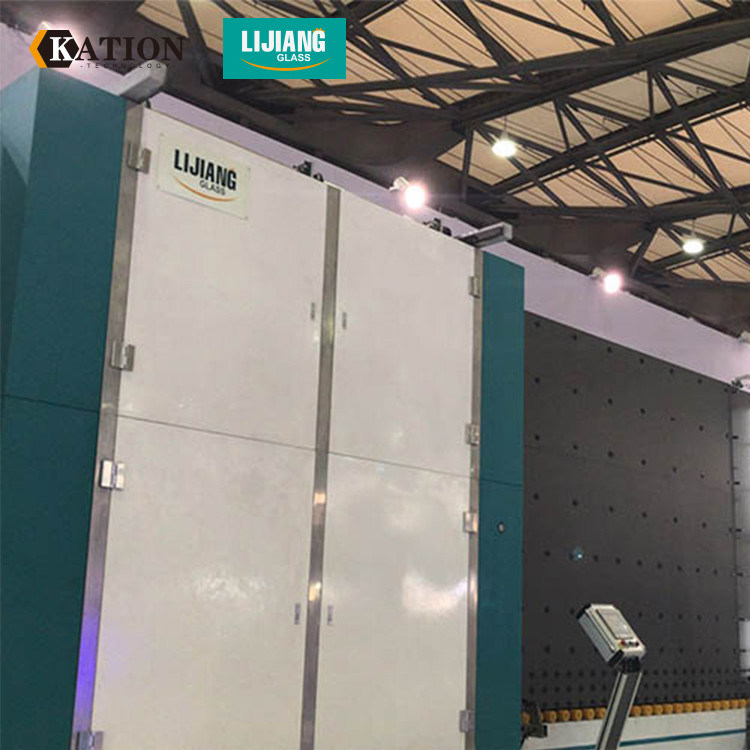

2. प्रेस बॉक्स की बचत बचत
दबाने वाला बॉक्स माइक्रो-माइक्रो स्विच को गोद लेता है, जो दबाने वाले हिस्से को क्षेत्रों में विभाजित करता है।
When each micro switch receives the signal, it adds a portion of the working area. जब प्रत्येक माइक्रो स्विच सिग्नल प्राप्त करता है, तो यह कार्य क्षेत्र के एक हिस्से को जोड़ता है। When the compatible micro switch is not touched, the field does not work. जब संगत माइक्रो स्विच को नहीं छुआ जाता है, तो फ़ील्ड काम नहीं करता है।
What's more, both sides and the bottom of the pressing box will be sealed to ensure the inflating effect. अधिक क्या है, दोनों पक्षों और दबाव बॉक्स के निचले हिस्से को फुलाया प्रभाव सुनिश्चित करने के लिए सील किया जाएगा। It can save a lot of argon gas and electricity. यह बहुत सारी आर्गन गैस और बिजली बचा सकता है।
3. स्वत: उच्च गति भरने आर्गन गैस
IG Line 22S fills 1m * 1m double glazed glass for just one piece. आईजी लाइन 22 एस सिर्फ एक टुकड़े के लिए 1 मीटर * 1 मीटर डबल घुटा हुआ ग्लास भरता है। Can set and display argon gas values directly on the screen. आर्गन गैस मूल्यों को सीधे स्क्रीन पर सेट और प्रदर्शित कर सकते हैं। From the screen, we can easily observe the argon gas content and filling speed. स्क्रीन से, हम आसानी से आर्गन गैस सामग्री और भरने की गति का निरीक्षण कर सकते हैं।
When the two pieces of glass are closing, it begins to fill with argon gas from under the glasses. जब कांच के दो टुकड़े बंद हो जाते हैं, तो यह ग्लास के नीचे से आर्गन गैस से भरना शुरू कर देता है। When the previous set value is reached, inflation will stop automatically. जब पिछले सेट मूल्य तक पहुँच जाता है, तो मुद्रास्फीति अपने आप रुक जाएगी।
